MEGALINEAR FC-S
Overview
MEGALINEAR FC-S
MEGALINEAR FC-S joins the family of MEGALINEAR FC, MEGAPOWER FC and MEGAFLEX FCM to complement the Megadyne product portfolio for food, packaging, pharmaceutical, and wash-down power transmission applications where dimension stability, accurate movement, a superior level of food safety and food contact certifications are required.
X-Ray and Metal Detectable (XMD) version feasibility is evaluable on request.
Features

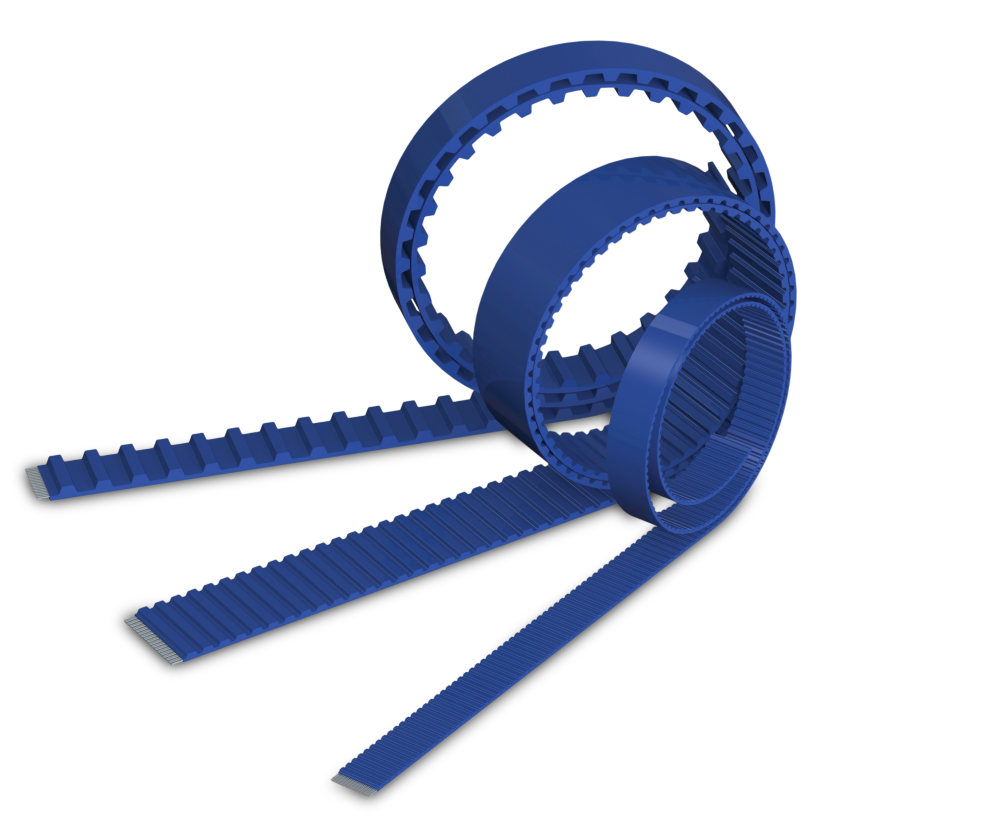

MEGALINEAR FC-S is a food processing and medical timing belt, fully compliant with worldwide food and safety standards, developed in response to the growing hygiene demands of these sectors. Supporting processes from packaging to cutting and splicing, it is the ideal choice for power transmission applications and synchronous conveyors.
Main components
BELT BODY:
Dark blue TPU compound:
• Food grade, high hygiene standard
• Dark blue colour suitable for food inspection vision systems
• Resistance to hydrolysis, oils, and greases 92 ShA
• Working temperature: -25° C / 70°C
Sealed edges:
• Ease of cleanability
• Imperviousness to liquids
• No space for harbouring bacteria

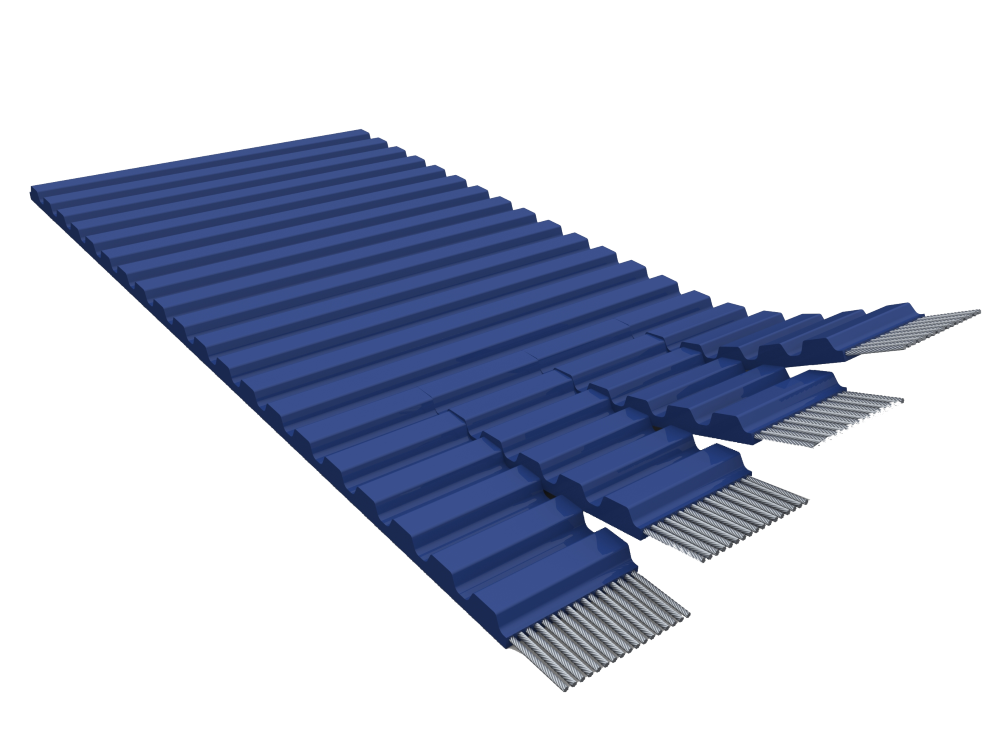

Fully encapsulated cords:
• Lack of gaps, eliminated risk of product contamination, improved food safety
• Suitability for washdown applications
• Unaffected by humidity
• Protection against corrosion
• Endless welding for any pitch length
CORD
Steel cords
• Steel tension members provide strength, stiffness, length tolerance, and pre-tension consistency.
REWORKING OPTIONS:
• Teeth side grinding
• Backside grinding
• Welded guides
• Cleats
Mechanical and chemical properties
- Due to its unique design, MEGALINEAR FC-S excels in hygiene, food safety, and cleanability with extremely precise movement.
- For applications operating in humid environments or exposed to chemical aerosols and steam, typical in food processing, pharmaceutical, and medical equipment, both the belt body material and tensile cords must offer high resistance to these challenging conditions to ensure consistent performance and durability.
Main Applications by Industry
Range
PITCHES & LENGTH
T5, T10, T20, AT5, AT10, AT20
• Standard delivery length: 50 m, 100 m
• Available in open-ended, spliced and welded
• Belt width availability depending on piches: 16 - 25 - 32 - 50 - 75 - 100
